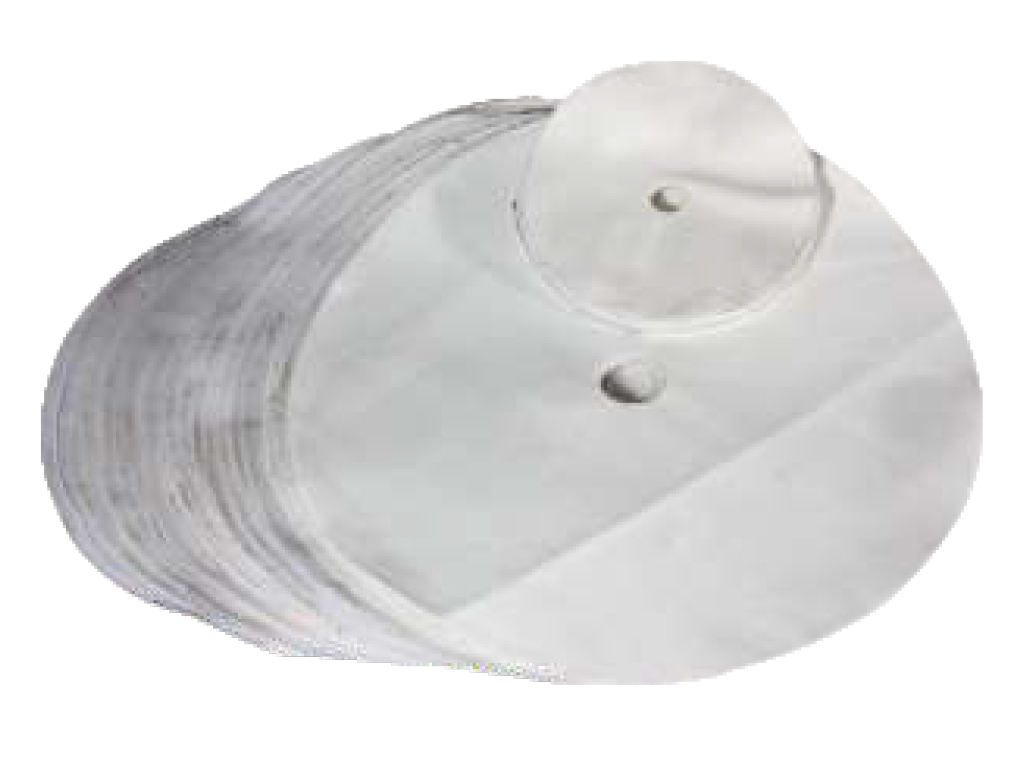

Available Sizes

7"∅, 8" .5∅, 12" .5∅, 14" .5∅, 19" .5∅, 25" .5∅


Application

Filter Pad Used in Oil, Chemicals, Intermediate, Cement Industries, Pharmaceuticals etc.





Specification of Filter Fabrics


Quality No WEIGHT SQ.MTR +/- 5% IN GSM TENSIL STRENGTH (+/- IN KG)
WARP / WEFT
AIR PERMEABILITY (CU FT./SQ.FT/SCE.AT 1.22"W.C) PARTICLE RETENTION MICRON (APPROX) MESH APPORX
099 270 200 / 140 0.97 30 TO 40 150
001 315 235 / 130 0.83 25 TO 30 250
005 380 354 / 135 0.50 15 TO 20 400
006 450 360 / 245 0.43 10 TO 15 450
007 520 360 / 250 0.30 5 TO 7 550/600
008 600 450 / 236 0.20 3 TO 5 650
008/HV 695 426 / 350 0.20 3 TO 5 700
PPM-011 240 295 / 145 0.50 10 TO 15 400
PPM-123 400 450 / 300 0.22 10 TO 15 400
PPM-23/HV 450 510 / 310 0.19 5 TO 8 550
NAV-999 500 500 / 400 0.13 3 TO 5 700
PY-005 430 325 / 250 0.20 15 TO 20 350
PY-007 550 325 / 300 0.12 5 TO 10 500
PY-126 700 600 / 308 0.11 2 TO 4 700 TO 725
NY-011 330 310 / 275 0.60 10 TO 15 400
NY-123 450 548 / 414 0.23 5 TO 10 500
